Hubbell Raco Square Box Welded Deep KO's & Six TKO's Raised Ground

Hubbell Raco Square Box Welded Deep KO's & Six TKO's Raised Ground

Hubbell Raco

Options

Model: 8232

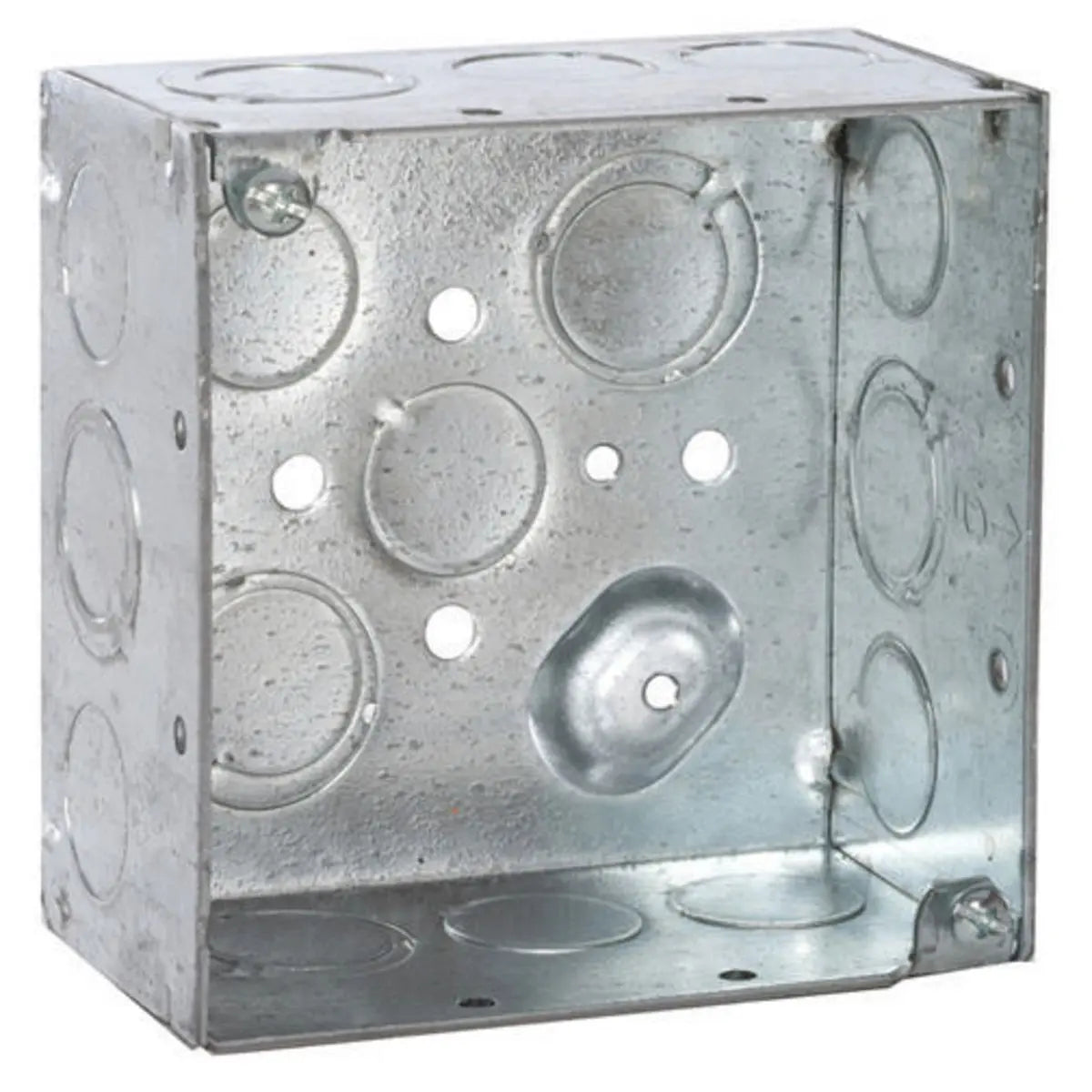

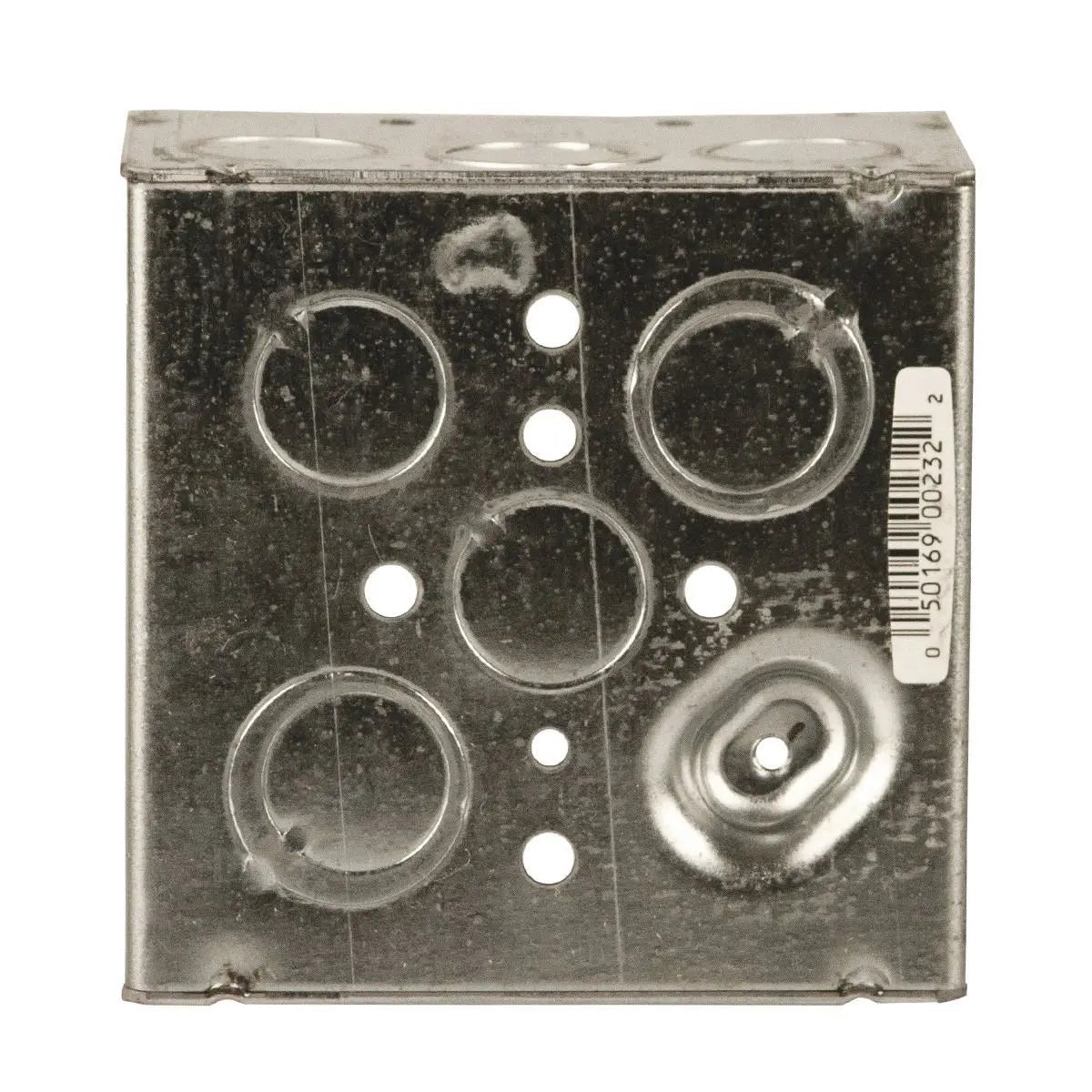

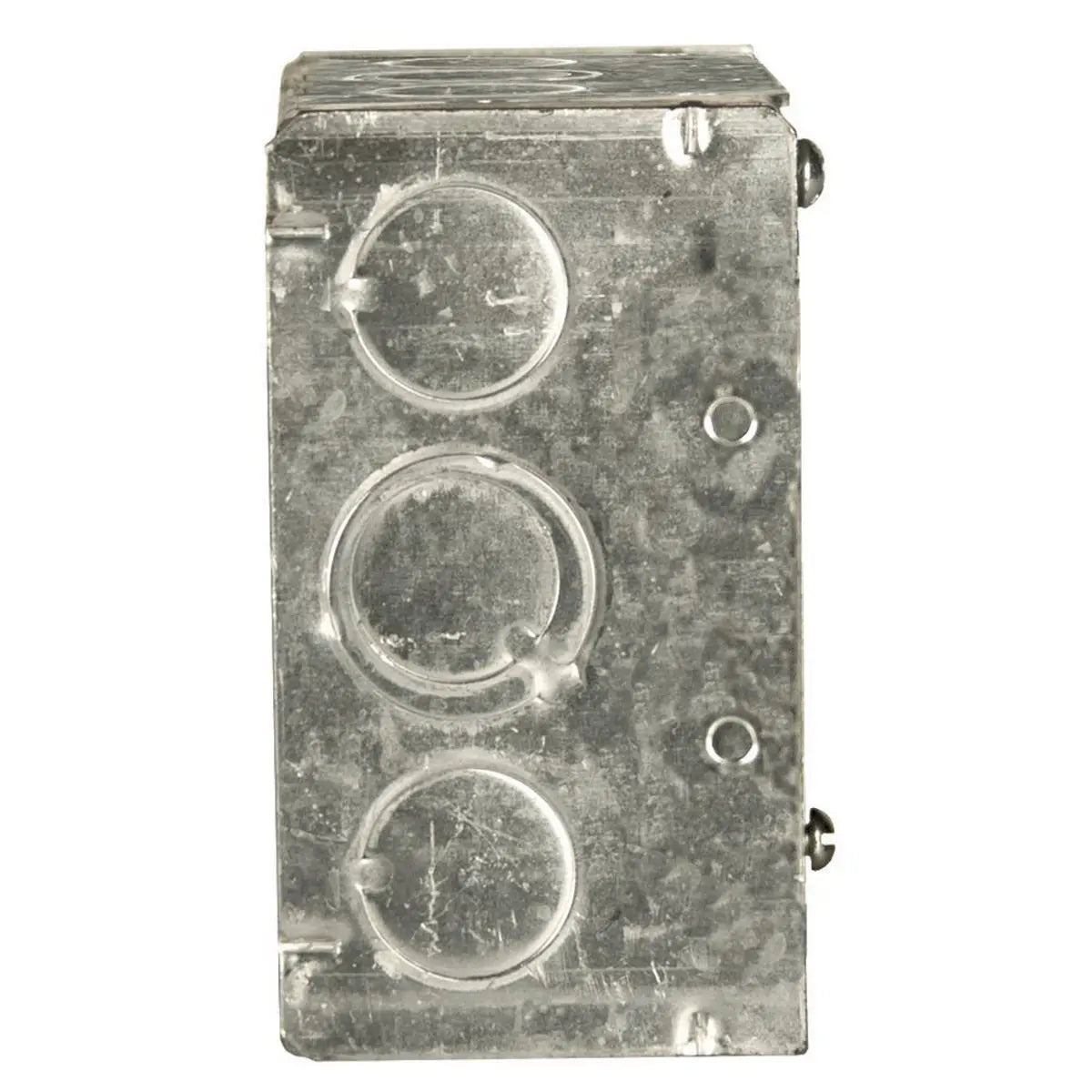

Square Box, Welded, 2-1/8 in. Deep, Ten 1/2 in KO's & Six TKO's, Raised Ground

Designed to enclose electrical wiring, switches, receptacles or lighting fixtures. Constructed from 1/16 in. pre-galvanized steel. 8-32 cover mounting screws assembled. Suitable for use without a bonding jumper in circuits up to 600V.

Combination screw heads allow quick installation
Welded construction
Ten 1/2 in KO's & Six TKO's
UL Listed
30.3 cu. in. capacity
Raised ground
Acceptable in 2-hour fire rated walls
UPC barcoded

General

Bracket Type	No Bracket
Drawn or Welded	Welded
Fire Resistance	Yes
Knockouts	1/2 in;1/2 - 3/4 in Combination (TKO)
Material	Steel
Number of Gang(s)	2-Gang
Type	Box
Wiring System	Conduit

Dimensions

Actual Depth	2.434 in
Cubic Capacity	30.3 cu.in
Depth	2.125 in
Height	4 in
Raised Ground	Yes
Weight	0.884 lb
Width	4 in

Electrical Ratings

Power Distribution Features

Fire Rated

Certifications and Compliance

Certified Listed

UL Listed

Logistics

Carton Quantity	25
Packaging Type	No Packaging
Pallet Quantity	1750
